Leaf Self Expander® Anatomical / Mini Leaf Self Expander®
These expanders complement the existing Leaf Self Expander® range, with two new types featuring a reduced size for the fabrication of fixed appliances. They aim to expand the transverse dimension of the arch or distalize upper molars.
Available for analog or digital workflows in different configurations.
Expansion capacity of 6 or 9 mm and 600 g springs.

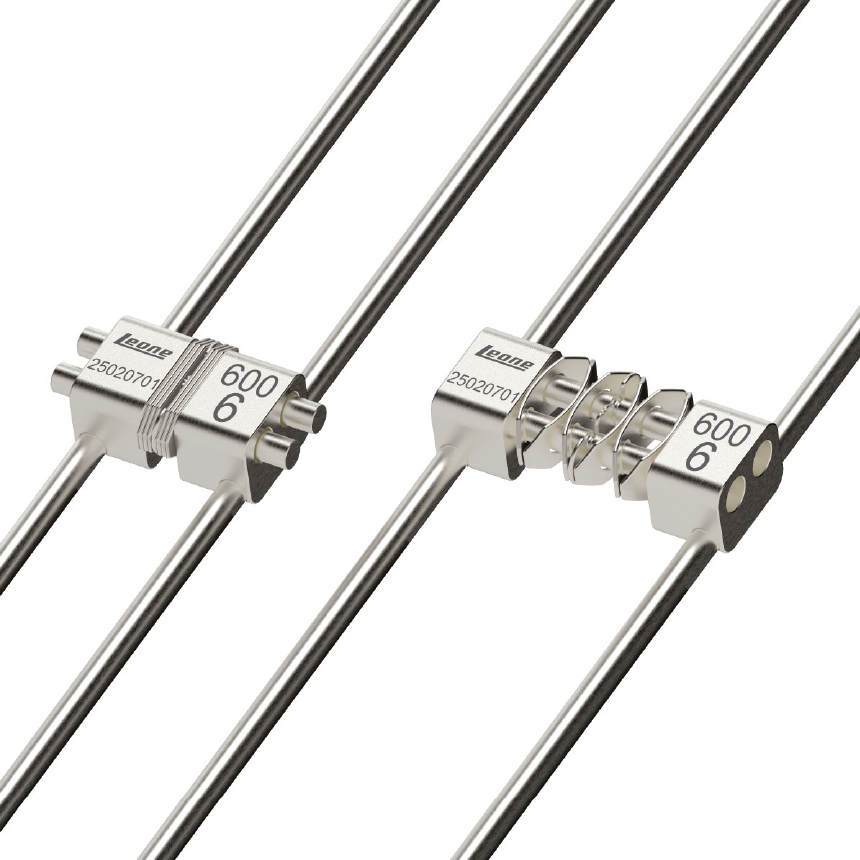

Leaf Self Expander® Anatomical

PRODUCT CODE EXPANDER BODY EXPANDER HEIGHT ARMS DIAMETER BODY WIDTH MAX EXPANSION
A2503-06
6 molle 600gr ca.
6 mm 4,5 mm 1,5 mm 13 mm 6 mm
A2503-09
8 molle 600gr ca.
6 mm 4,5 mm 1,5 mm 16 mm 9 mm

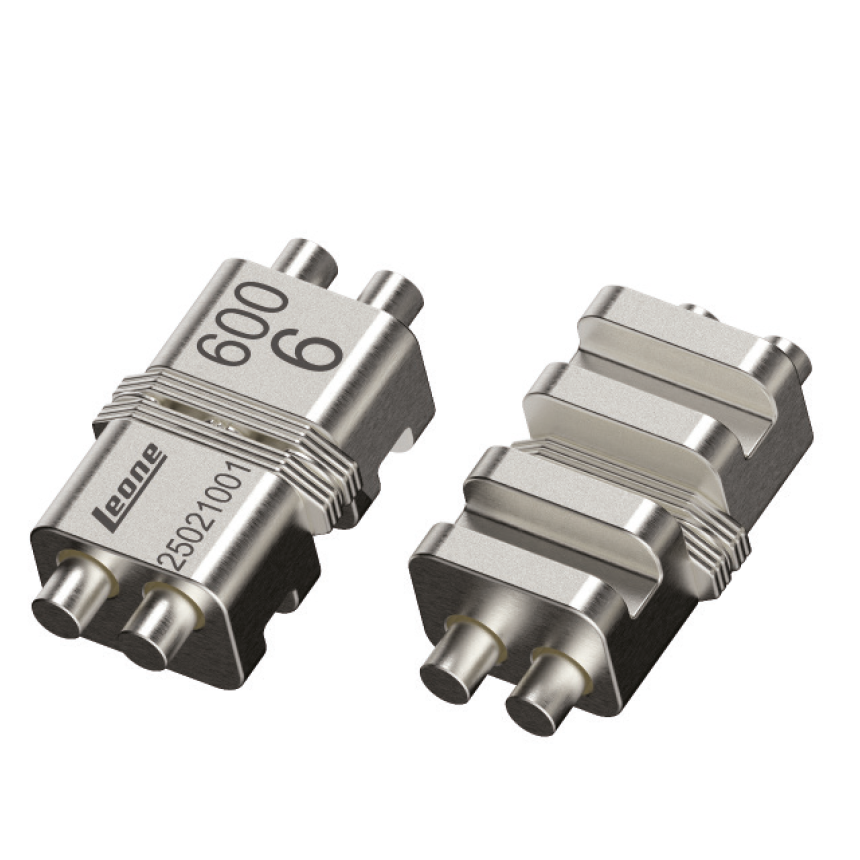

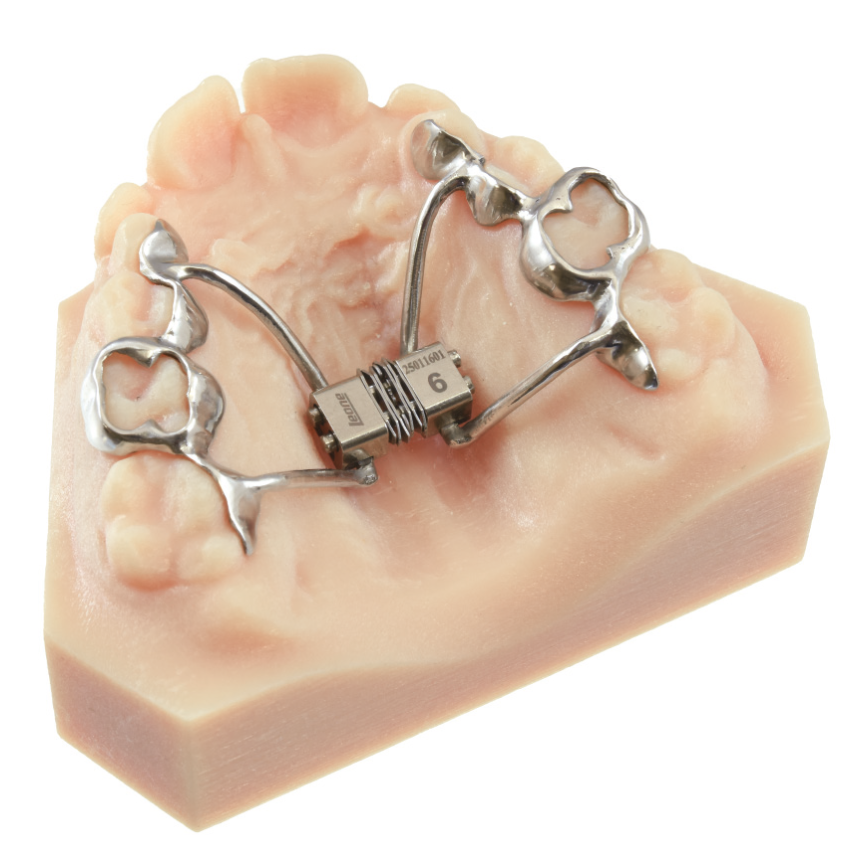

Leaf Self Expander® Anatomico CAD-CAM

PRODUCT CODE EXPANDER BODY EXPANDER HEIGHT BODY WIDTH MAX EXPANSION
A2503-06D
6 molle 600 gr ca.
6 mm 4,5 mm 13 mm 6 mm
A2503-09D
8 molle 600 gr ca.
6 mm 4,5 mm 16 mm 9 mm

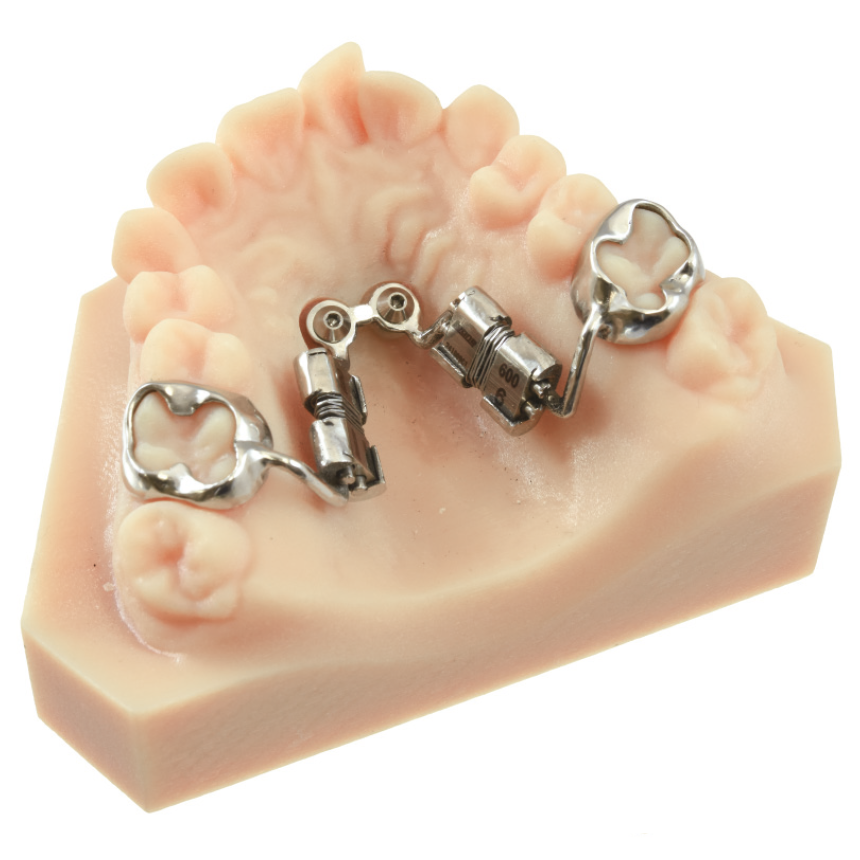

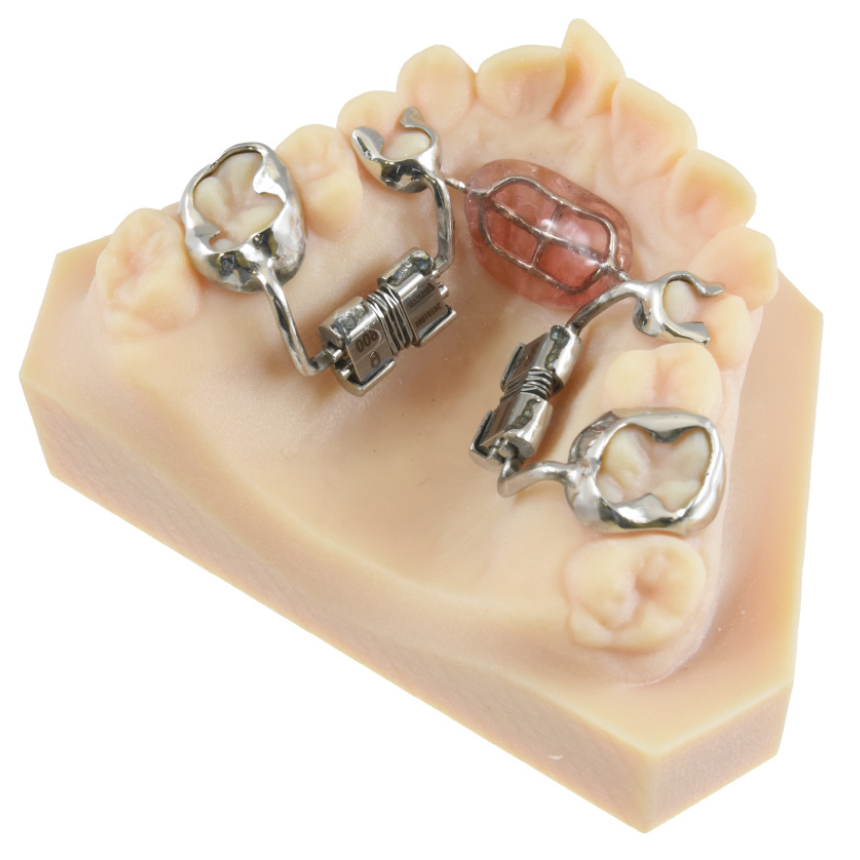

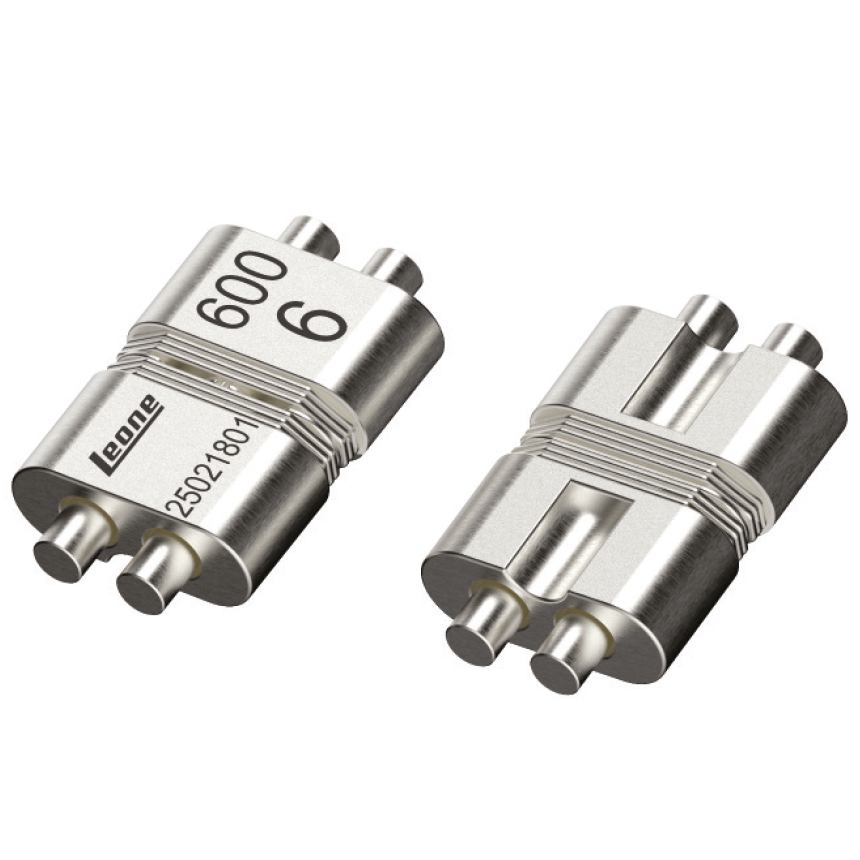

Mini Leaf Self Expander® CAD-CAM

PRODUCT CODE EXPANDER BODY EXPANDER HEIGHT BODY WIDTH MAX EXPANSION
A2502-06D
6 molle 600 gr ca.
7,5 mm 3 mm 13 mm 6 mm
